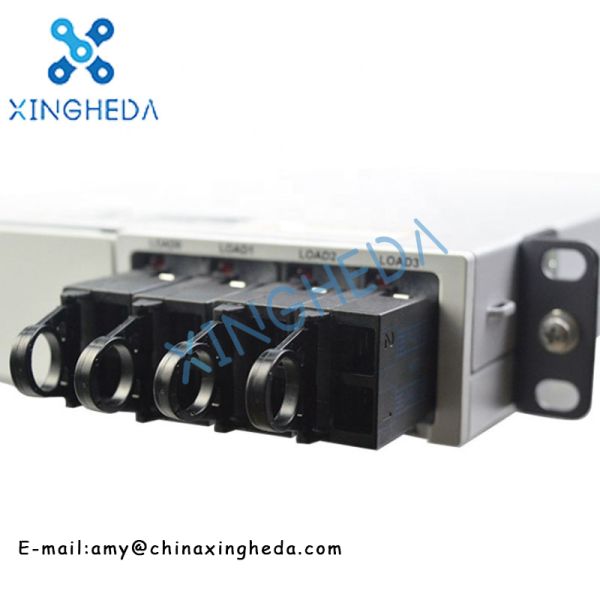

HUAWEI ETP48100-B1 PMU 11A embedded communication power supply unit
Product Description:
Input:100-120V / 200-240V
Output:-53.5V;4 way 100A(50A can be optional)
Rectifier module:R4850G*1

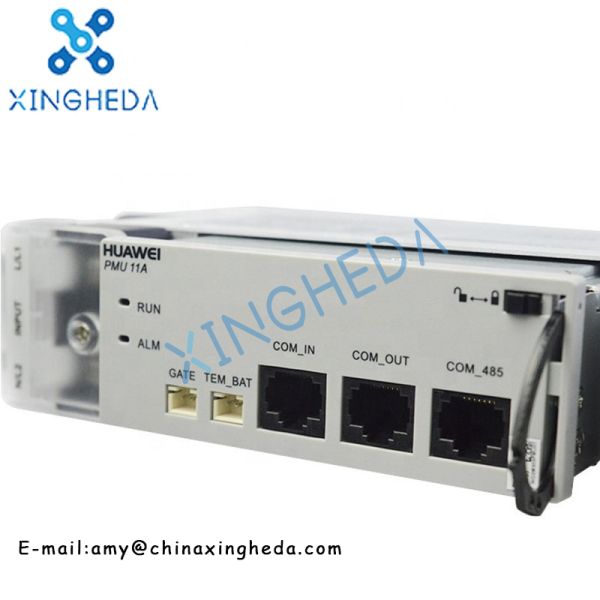

Monitoring module:PMU 11A*1
Apply to:Fiber home/Huawei/ZTE OLT
This series of embedded power products includes 5 types of products: ETP4830, ETP4890, ETP48150, ETP48200 and ETP48400. They can provide wide range of DC output from 30A to 400A, and are very broad
application in DC power system scenarios. The functional unit using a standardized installation structure design, power height ranging from 1U to 11U, compact design, support 19-inch rack or cabinet installation. The
system can be adapted to a wide range of AC input voltage, with intelligent battery management, remote monitoring, etc.
| Integrated power | ETP4830 | ETP4890 | ETP48200 |
| System | Dimension(W×D×H) | 43.6mm(H) ×442mm(W) ×255mm(D) | 86.1mm(H) ×442mm(W) ×255mm(D) | 266.7mm(H)×482.6mm(W) ×310mm(D) |
| | Weight | ≤8kg (full configured) | ≤10kg (full configured) | ≤25Kg(without rectifiers) |
| | Rated capacity | 30A (2PSU) | 45/90A (compatible with 15A and 30A rectifier) (3PSU) | 200A(4PSU) |
| | Cabling mode | Cable outlet from the bottom of the cabinet |
| | Protection level | IP20 | |
| AC Distribution | Input | 220V single phase/110V dual live wire | 380V three phase/220V single phase/110V dual live wire |
| | Input voltage | 85~300VAC, rated: 220VAC |
| | Input frequency | 45~66Hz, rated: 50Hz/60Hz |
| DC Distribution | Output voltage | 42~58V DC, default value: 53.5V DC | |
| | Maximum output power | 2000W | 4800W | 12000W |
| | Battery branch | 1x20A fuse | 1×80A MCB | 2x125A MCB |
| | BLVD | 2x20A fuse | 1×10A MCB, 1×32A MCB, 2×40A MCB | 1x63A MCB, 1x32A MCB, 3x16A MCB |
| | LLVD | N/A | N/A | ETP48200-A6: 2x100A MCB ETP48200-B6: 2x100A MCB, 1x20A MCB |
| Rectifier | Efficiency | Up to 96% | Up to 97% | Up to 97% |
Product Details:
If you are interested, please let us know the specific model. We will provide the best service and the best price!
