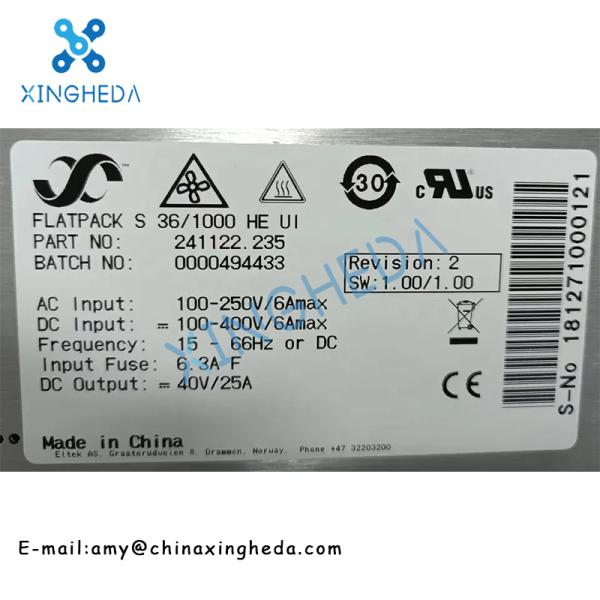

| Model | 36/1000 HE UI |
| Part number | 241122.235 |
| INPUT DATA |
| Voltage (nominal) | 185 - 400 VDC / 185 - 275 VAC |
| Voltage (operating range) | 85 - 400 VDC / 85 - 305 VAC |
| Frequency | DC, 16 2/3 Hz, 45 - 66 Hz |
| Current (maximum) | 5.9 ADC / 5.9 ARMS |
| Protection | Fuse in Positive & Negative, Reversed polarity insensitive, Shutdown above 420 VDC / 305 VAC |
| OUTPUT DATA |
| Voltage | 40 VDC |
| Voltage (adjustable range) | 331) - 45 VDC |
| Power (maximum) @ nominal input | 1000 W / 450 W @16 2/3 Hz input |
| Power (maximum) @ 85 VDC / 85 VAC input | 440 W / 440 W |
| Current (max cont.) @ nominal input | 27.8 A (@VOUT < 36 VDC) |
| Hold up time, maximum output power | >10ms; output voltage > 33 VDC |
| Current sharing (10 - 100% load) | ±5% of maximum current from 10 to 100% load |
| Static Voltage regulation (10 - 100% load) | ±0.5% |
| Dynamic Voltage regulation | ±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms |
| Ripple | < 150 mVPP , 30 MHz bandwidth |
| Protection | ORing FET Short circuit proof High temperature protection Over voltage Shutdown |
| OTHER SPECIFICATIONS |
| Efficiency | > 95 % |
| Isolation | 4.2 kVDC - input to output 2.25 kVDC - input to earth 710 VDC - output to earth |
| Alarms: Red LED | Low and high input voltage, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure when fan stops, Low output voltage alarm, CAN bus failure |
| Warnings: Yellow LED | Rectifier in power de-rate mode, Remote output current limit activated, Input voltage out of range, flashing at overvoltage, Loss of CAN communication with controller |
| Normal operation: Green LED |
| Alarm relay (NO - opens when de-energized) | Opens on Alarms and missing input voltage. |
| MTBF (Telcordia Issue 3 & Method II Case L1) | >2 700 000 (@ Tambient : 25 °C) |
| Operating temperature (5-95% RH n.cond. hum.) Maximum output power de-rates above temp / to | -40 to + 85°C [-40 to +185°F] 45°C [140°F] / 400W @ 85°C [185°F] |
| Storage temperature | -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing |
| Dimensions[WxHxD] / Weight | 72 x 40 x 217mm2) (2.84 x 1.57 x 8.54”)2) / < 850 g (1.9 lbs) |
| DESIGN STANDARDS |
| Electrical safety | EN 60950-1:2006+A11:2009+A1:2010+A12:2011 |
| EMC | EN 61000-6-1:2007, -6-2:2005, - 6-3:2007 + A1:2010, - 6-4:2007 + A1:2010 EN 50121-1:2015, -2:2015, -4:2015, -5:2015 |
| Environment | ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2) RoHS (2011/65/EU) and WEEE (2012/19/EU) compliant |
